Product Detail

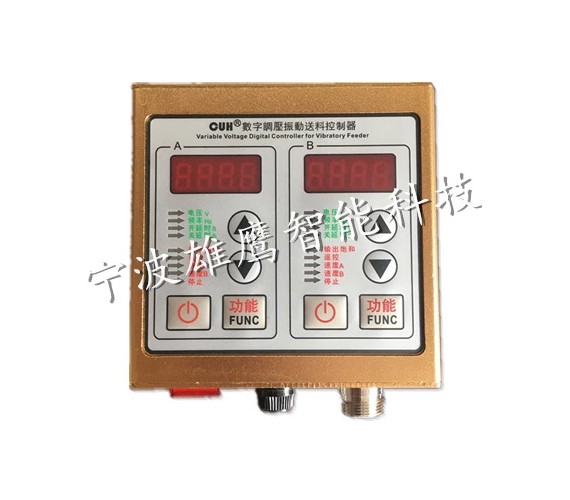

SDVC22-S(5A)Digital Voltage Regulating Vibration Feeding Controller


Product Features:

Automatic voltage regulator: built-in digital voltage regulator circuit, can reduce the power supply voltage fluctuations caused by changes in feed speed.
Adjustable start: At startup, the output voltage will gradually increase from zero to the default voltage to eliminate the impact on the vibration plate. The slow start time can be digitally preset.
Fuse short circuit protection: When the output is short-circuited, the controller's fuse will fuse to protect the controller and vibration equipment.
Overheat protection: When the controller operating temperature is too high will stop the output to self-protection.
Overcurrent protection: When the controller operating current exceeds the rated current will stop the output to protect the controller and vibration equipment.
Speed ​​Preset: Up to 4 pre-set output voltages can be selected directly via an external control signal.
Two-way switch sensor full / material space shutdown: support 2-way NPN-type sensor or PLC remote material full / material space shutdown control.
Photoelectric sensor material full / material empty shutdown: support for photoelectric on the radio sensor full / material empty shutdown control.
Remote speed control: you can directly use the external potentiometer, PLC or 1 ~ 5V voltage signal remote control output voltage.
DC control output: the controller can output DC low voltage control signal to drive the solenoid valve and other equipment and the controller work together.
Maximum output voltage setting: Set the maximum adjustable voltage to prevent the user to misuse the output of excessive voltage damage to vibration equipment.
Size and weight:

Size:

Length 130mm × width 106mm × height 57.5mm
Weight: 500g (without accessories)
